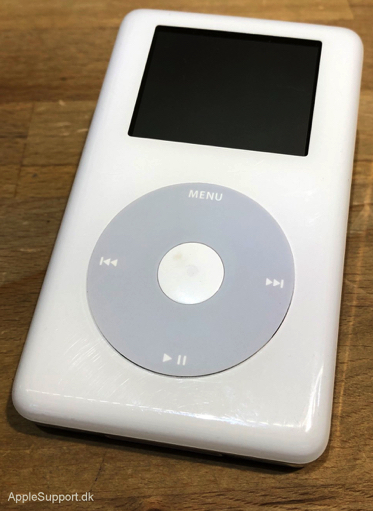

iPod

Essentials

Family: iPod

Codename: ?

Minimum OS: iPod color OS 1.1

Maximum OS: iPod color OS 1.2.1

Introduced: June 2005

Terminated: October 2005

Processor

CPU: ARM7TDMI

CPU Speed: dual 80 MHz embedded

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 32 MB

Maximum RAM: 32 MB

Video

Screen: 2" backlit LCD

Max Resolution: 16-bit 220x176

Video Out: composite (via audio port), s-video (via Dock Connector)

Storage

Hard Drive: 20/60 GB 4200 RPM

ATA Bus: ATA-66

Input/Output

USB: via Dock Connector

Firewire: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker

Miscellaneous

Dimensions: 4.1" H x 2.4" W x 0.75" D

Weight: 0.40 lbs.

Notes

The 20 GB model was 0.63" deep and weighed 0.37 lbs.
